SPECTROSCAN МАКС-GVM




SPECTROSCAN МАКС-GVM

"SPECTROSCAN MAKC-GVM" WDXRF spectrometer determines elements from Na (Sodium) to U (Uranium) in solids, liquids or powders, in solutions and thin films, deposits on filters.
Submit request
"SPECTROSCAN MAKC-GVM" WDXRF spectrometer determines elements from Na (Sodium) to U (Uranium) in solids, liquids or powders, in solutions and thin films, deposits on filters.
The spectrometer operation is based on irradiation of the sample with primary X-rays generated by X-ray tube, registration of the secondary fluorescence from the sample elements preliminary diffracted on a crystal, and calculation of the elements concentration with the help of calibration equation, which is a relation between the element concentration and intensity of the registered secondary emission from the element. The spectrometer has high resolution of spectral lines and therefore provides accurate determination of elements in complicated multicomponent substances.

"SPECTROSCAN MAKC-GV" is a desk top WDXRF spectrometer controlled by an external computer.
There are three blocks in it: spectrometer, vacuum pump and closed cycle water cooling system.

The measuring system of the spectrometer is in the vacuum chamber while the samples are at the ambient pressure, so no He is required for the sample chamber and all samples (including liquid and powder) may be studied without any special measures taken.

The Spectrometer is controlled with external computer.


ANALYTICAL PARAMETERS

Determined elements

from Na to U

Energy resolution

9 eV (Si Kα), 60 eV (Fe Kα)



TECHNICAL SPECIFICATION

X-ray tube anode voltage

40 kV

X-ray tube capacity

up to 160 W

X-ray tube anode

Pd (or Cr)

Spectral resolution

Crystal diffraction

Four crystal analyzers

LiF(200), C(002), PET, KAP

Sample changer

10 sample automatic

2  spinning samples

Power supply

220 V, 50 Hz

Consumed capacity from  220 V mains


850 W

PC interface

USB

No additional gas required



Closed cycle water cooling system



Non-destructive analysis – all elements in the range from Na (Sodium) to U (Uranium) can be determined from one sample. Desk top spectrometer doesn’t require water supply or gas supply systems.

The measuring system of the spectrometer in the vacuum chamber while the samples are at the ambient pressure, so no He is required for the sample chamber and all samples (including liquid and powder) may be studied without any special measures taken.

Spectrum scanning and high resolution of crystal analyzers excludes close lines of different elements overlapping (therefore there is no need in their mathematical differentiation), provides correct background accounting. All these provide accuracy and reliability of analysis.

Automatic sample changer for 10 samples with two spinning samples for analysis of non-homogeneous samples minimizes need of operator activity while measurements.

The spectrometer is delivered precalibrated for customer’s analytical tasks, with required accessories set and sample preparation equipment if necessary.

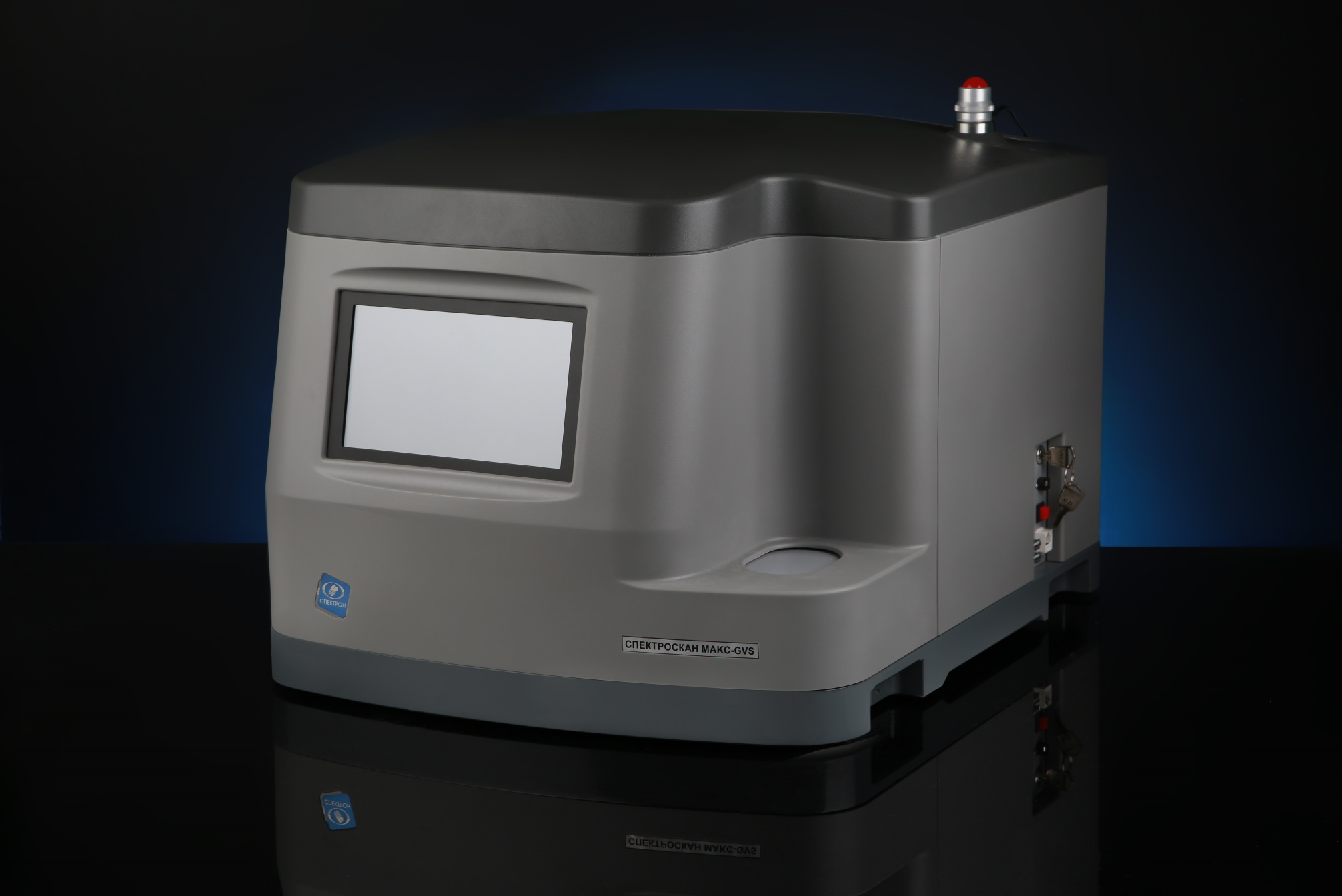

"SPECTROSCAN MAKC-GVM" is a desk top WDXRF spectrometer controlled by an internal computer.

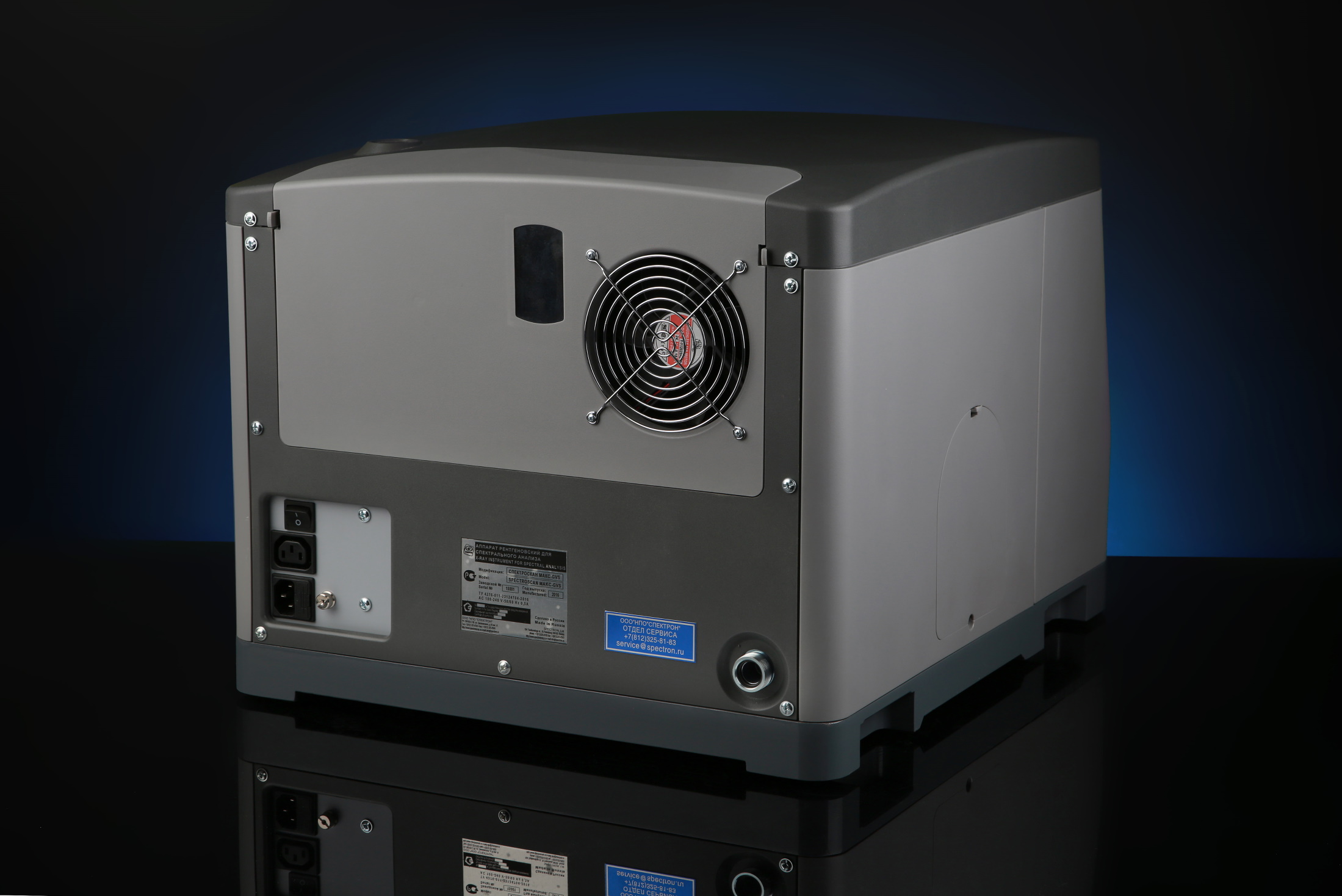

There are two blocks in it: spectrometric with closed cycle water cooling system and vacuum pump.

Spectrometric bloc is equipped with X-ray tube power of 160 W with a side output of radiation, goniometer, located in an evacuated volume, four automatically interchangeable analyzer crystal, two-chamber radiation detector, automated multiposition sample changer device.


 Technical specification
X-ray tube anode voltage
40 kV
X-ray tube capacity
up to 160 W
X-ray tube anode
Pd (or Cr)
Spectral resolution
Crystal diffractio
Four crystal analyzers
LiF(200), C(002), PET, KAP
Sample changer
10 sample automatic
2 spinning samples
Power supply
220 V, 50 Hz



Analytical parameters
Determined elements from Na to U
Energy resolution 9 eV (Si Kα), 60 eV (Fe Kα)

"SPECTROSCAN МАКС-GV" spectrometer is the most universal instrument of the SPECTRON instruments. Complete list of applications see in "Industries and Applications" section.
